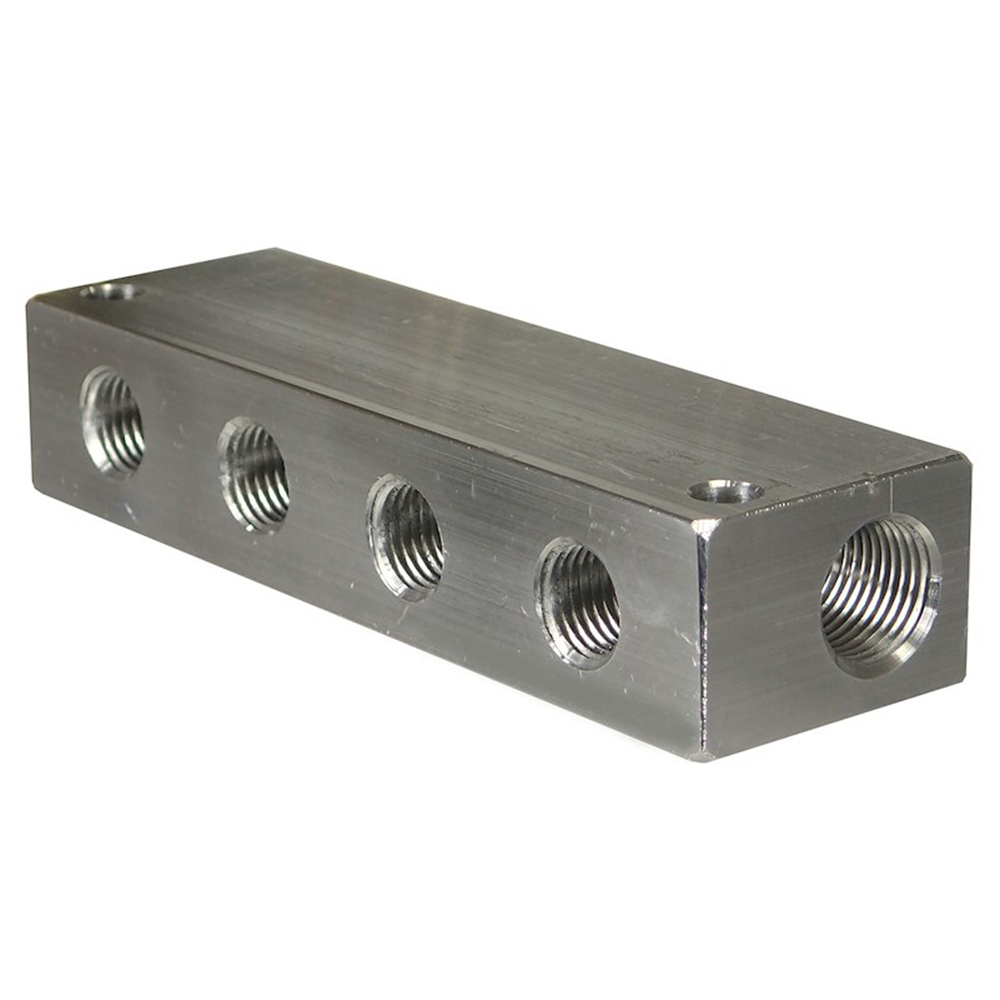

MB Sturgis 402316 Fuel Distribution Propane Manifold Block – 6 Port

Description

The MB Sturgis 6-way Fuel Distribution Manifold Block is designed with holes for permanent attachment to a wall or other structures in your RV.

• NPTF tapered threads for an easy, leak-free connection.
• Inlet ports: (2) 3/8" female NPTF.
• Outlet ports: (4) 1/4" female NPTF.
• Max Pressure: 1000 PSI.
• Tested and passed a 96-hour salt spray test.
• Constructed of 6061 T6511 anodized aluminum.
• CSA certified to UL407.
• Dimensions: 1" x 1.5" x 4.875".
• Outlet ports distance (center to center): 1.125".
• Height from bottom to center of inlet ports: 0.5".
• Weight: 0.7 lbs.
• Made in the USA.
