Maxxair 00-06200K MaxxFan Ventillation Fan with Smoke Lid and Manual Opening Keypad Control

Description

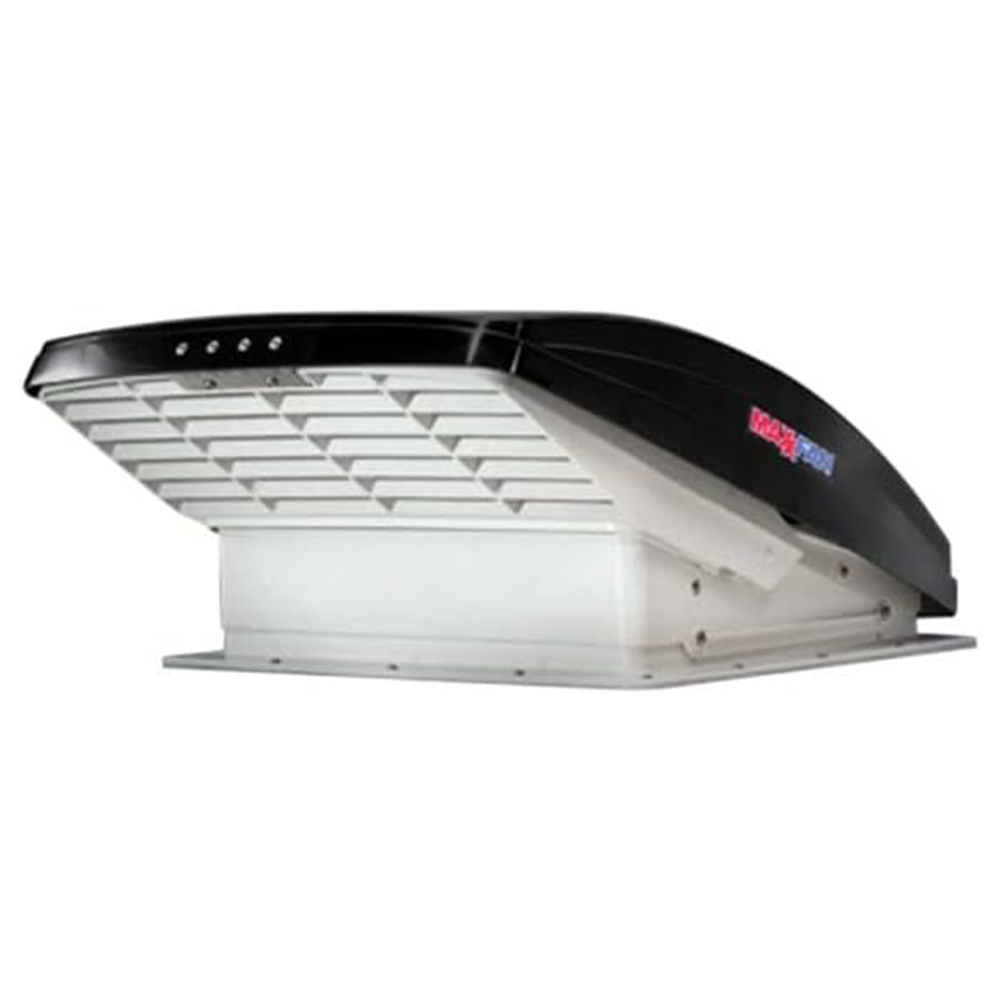

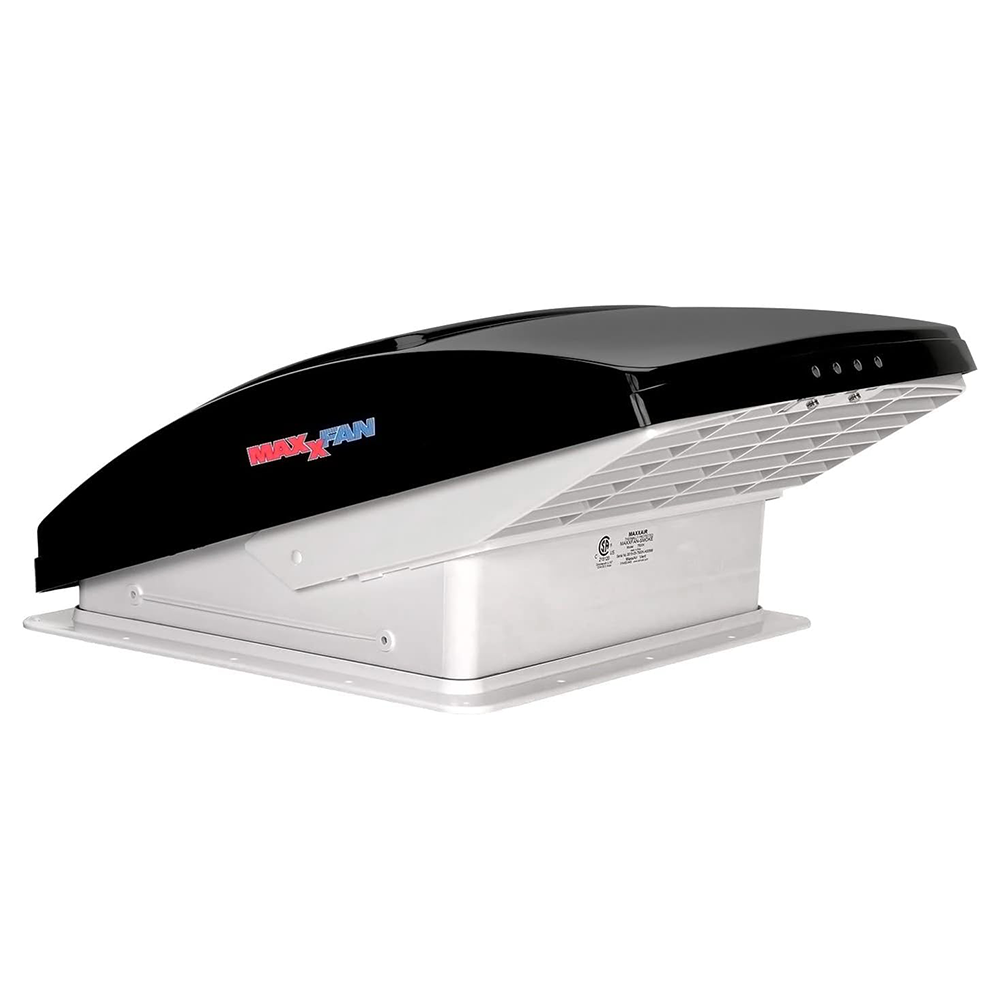

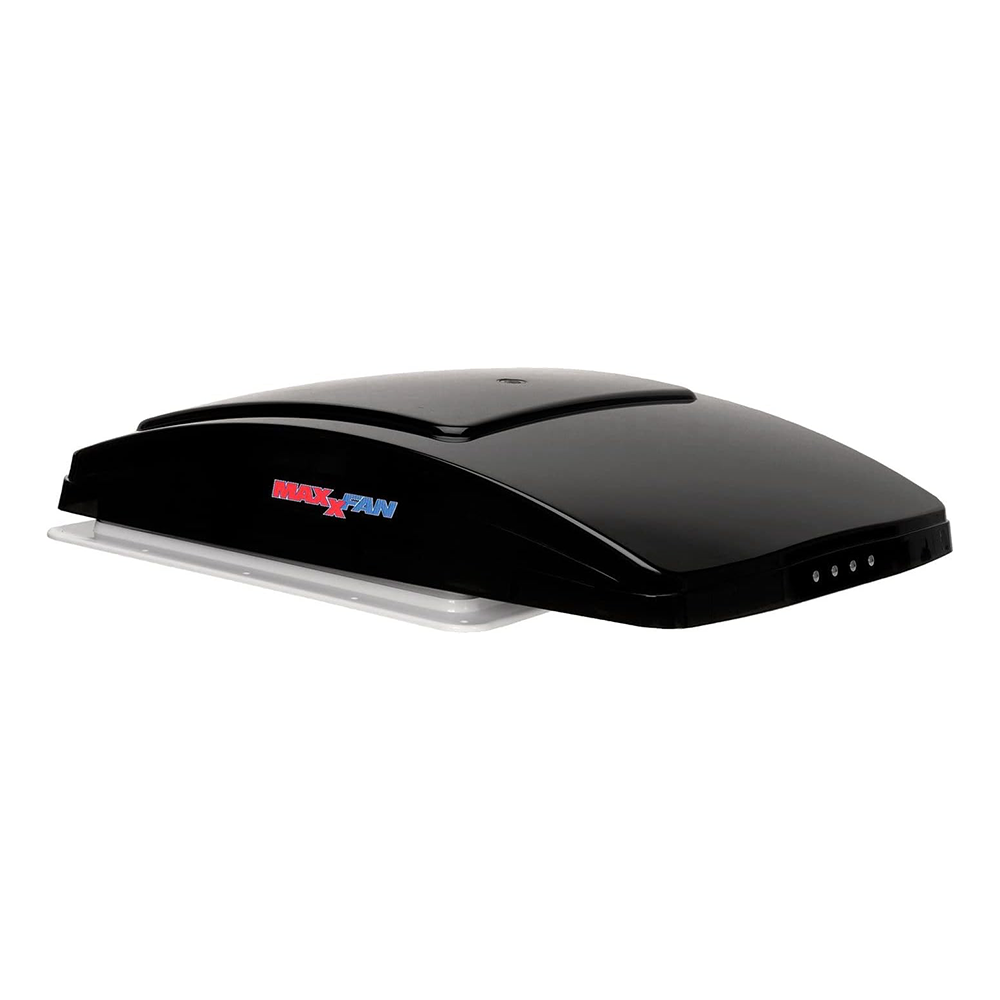

MaxxAir 00-06200k RV & Van MaxxFan® Deluxe Roof Vent – Smoke
The MaxxFan Deluxe is an advanced ventilation solution designed specifically for RVs and campervans, ensuring a comfortable indoor environment regardless of external weather conditions. This system includes a built-in rain cover, a 10-speed reversible fan, manual opening, and a user-friendly installation process. It fits seamlessly into a standard 14″ x 14″ roof cut-out, making it an excellent upgrade for any recreational vehicle.

Advanced Rain Protection
The MaxxFan Deluxe features a high-quality built-in rain cover that effectively prevents rainwater from entering the interior, allowing continuous ventilation in all weather conditions. This integrated rain shield is essential for maintaining a dry and comfortable indoor environment, eliminating the need for additional external vent covers. The rain shield’s robust construction ensures long-term durability and reliability, making it a vital component of this ventilation system.

Efficient Airflow
Equipped with a reversible 12″ fan that offers 10 variable speeds, the MaxxFan Deluxe can significantly enhance air circulation within your RV. The fan’s capability to operate in both intake and exhaust modes allows for flexible airflow direction, effectively removing stale air and drawing in fresh external air. Additionally, the built-in thermostat aids in maintaining the desired temperature, automatically adjusting the fan’s operation to keep the interior environment ideal for occupants.

Installation
Designed to be a straightforward process, suitable for standard RV roof openings of 14″ x 14″. The system requires a 12V connection and includes screws to mount the fan to the roof. Putty tape and self-leveling caulking are needed for a complete installation and are sold separately. This design ensures a secure and leak-proof installation, enhancing the overall integrity and functionality of the ventilation system in your recreational vehicle.

Additional Info

Fits roofs
1 1/8″ – 6 1/2″

Rough Opening Size
14 1/4″ X 14 1/4″

Vent Extends Above Roof
5″ Closed / 9 5/16″ Open

Power Source
12V DC

Fan Speeds
10

Air Flow
Intake and Exhaust

Opening Style
Manual Operation
